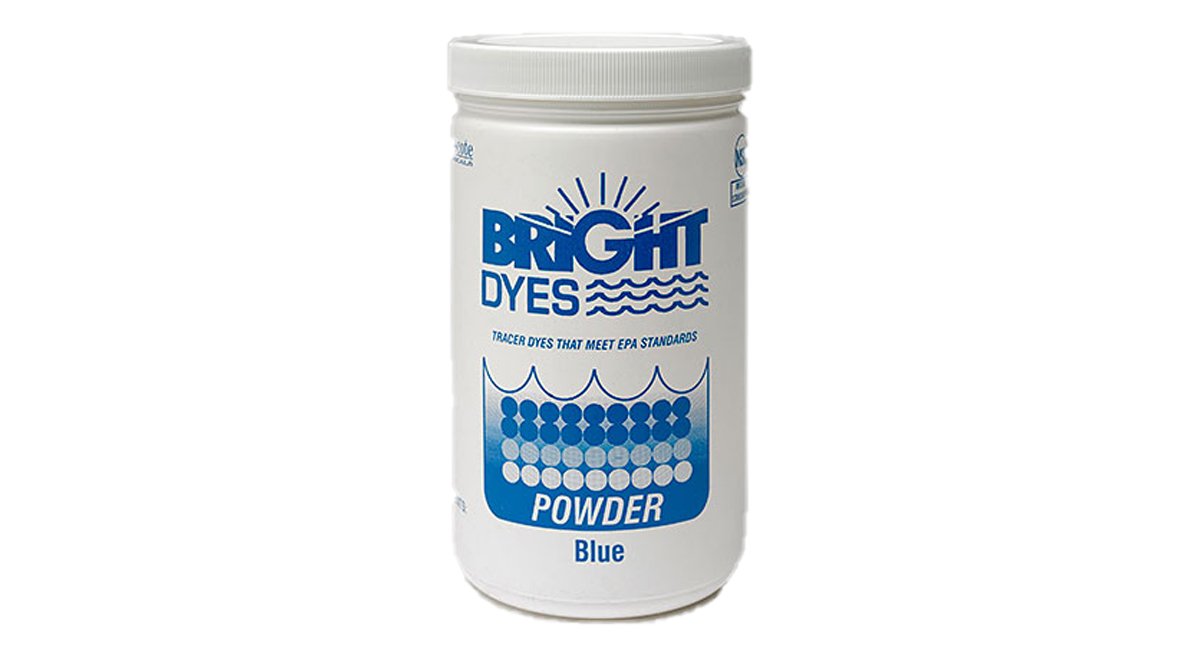

BRIGHT DYES® WATER TRACING DYE: BLUE LEAK TRACING DYE POWDER

Bright Dyes® Powder products are most effective with applications involving large volumes of water. They have a moderate rate of dispersion and are safe, non-toxic, biodegradable and certified for NSF International Standard 60. In an effort to support our water conservation efforts we only offer products that are environmentally friendly and that get the job done efficiently. You can rest assured in choosing Kingscote Chemicals blue leak tracing powder.

BRIGHT DYES® WATER TRACING DYE: BLUE LEAK TRACING DYE POWDER

Bright Dyes® Powder products are most effective with applications involving large volumes of water. They have a moderate rate of dispersion and are safe, non-toxic, biodegradable and certified for NSF International Standard 60. In an effort to support our water conservation efforts we only offer products that are environmentally friendly and that get the job done efficiently. You can rest assured in choosing Kingscote Chemicals blue leak tracing powder.

SORT BY COLOR:

BLUE

ORANGE

RED

YELLOW/
GREEN

SORT BY TYPE:

TABLETS

LIQUID

POWDER

WAX

BLUE TRACER DYE POWDERS

Product ID Name Type Color Fluorescent NSF Certified GHS SDS Tech Data
105005 FLT Blue – Powder Powder Blue
FLT-Blue-Powder.pdf TD-FLT-Blue.pdf
105002 Standard Blue – Powder Powder Blue
Standard-Blue-Powder.pdf TD-Std-Blue.pdf

BLUE TRACER DYE POWDERS

Product ID Name Type Color Fluorescent NSF Certified GHS SDS Tech Data
105005 FLT Blue – Powder Powder Blue
FLT-Blue-Powder.pdf TD-FLT-Blue.pdf
105002 Standard Blue – Powder Powder Blue
Standard-Blue-Powder.pdf TD-Std-Blue.pdf

FREQUENTLY ASKED QUESTIONS FOR POWDER DYES

Bright Dyes® are safe for the environment, non-toxic, biodegradable and meet EPA standards. They are the only full line of water tracer dye products certified by the National Sanitation Foundation (NSF) Standard 60, for use in and around potable water at recommended levels.

The color of all dyes will disappear if the solution is mixed with chlorine. Add approximately 4 grams of 12% bleach for every gram of product in the solution. Adding water will also dilute dye concentration and reduce coloration, or even eliminate color all together depending on volume of water added.

Bright Dyes® act as a coloring label on each drop of water. As that water or liquid travels, it can be identified at each point on its travel, until it reaches extreme dilution.

Bright Dyes® fluorescent dye tracers are dyes that selectively absorb light in the visible range of the spectrum. They are fluorescent because, upon absorbing light, they instantly emit light at a longer wavelength than the light absorbed. This emitted (fluorescent) light goes out in all directions. Most common fluorescent tracers are compounds that absorb green light and emit red fluorescent light.

Below are some rough guidelines.

Tablets – As a general rule, 1 Bright Dyes® tablet will provide a strong visual in 60 gallons of water. I.e.: A 1,200 gallon septic system would require between 15- 20 tablets for a strong visual inspection.

Liquid concentrate – As a general rule, 1 Bright Dyes® pint will provide a strong visual in 10,000 gallons of water. I.e.: A collection line having 10,000 gallons of flow, would require 1 pint of liquid concentrate for a strong visual inspection.

Powder – As a general rule, 1-pound of Bright Dyes® powder will provide a strong visual in 120,000 gallons of water. I.e.: A cooling tower holding 240,000 gallons of water would require 2 pounds of Bright Dyes® powder for a strong visual.

Bright Dyes® Standard Blue and Bright Dyes® FLT Yellow/Green are a little less expensive per gallons treated in the powder and liquid concentrate, than Bright Dyes® FWT Red.

  • 1 pound of Bright Dyes® Standard Blue or Bright Dyes® FLT Yellow/Green powder will create a strong visual in 120,000 gallons of water.
  • 1 pound of Bright Dyes® FWT red powder will create a strong visual in 60,400 gallons of water.
  • 1 gallon of Bright Dyes® Standard Blue or Bright Dyes® FLT Yellow/Green liquid will create a strong visual in 125,500 gallons of water.
  • 1 gallon of Bright Dyes® FWT Red 50 will create a strong visual in 62,500 gallons of water.

The color of Bright Dyes® you use should be based on contrast to the background color of the water. Any color can be used in clear water.

Bright Dyes® Fluorescent FWT Red Dye and Bright Dyes® FLT Yellow/Green dye because of their fluorescent nature have a greater apparent contrast than non-fluorescent blue.

Bright Dyes® FLT Yellow/Green is our most popular color and provides a vivid visual contrast in turbid, murky or brown colored water. Its’ fluorescent properties allow use at visual, UV and fluorometric levels.

Bright Dyes® FWT Red is our second most popular color and provides an excellent visual contrast to bodies of water which have high algae content or are green in color. Its’ fluorescent properties also allow use at visual, UV and fluorometric levels.

Bright Dyes® Standard Blue dye is generally more acceptable to public view but usually is not as vivid as Bright Dyes® FLT Yellow/Green and Bright Dyes® FWT Red when used in tracing situations.

PPM means parts per million. 1 PPM means the color of the product is visible in clear water at one part dye tracing product to a million parts water. 1 PPM in 10,000 gallons of water requires approximately 1 pint of Bright Dyes water tracing liquid concentrate. This is generally referred to as a strong visual concentration level.

The material will not adversely affect an individual’s health. Drink plenty of water and do not induce vomiting. The person’s perspiration and urine will be tinted the color of the tablet for a short period of time.

It is dependent on the application, water color and the volume of water involved.

SMALL VOLUMES OF WATER – 0 – 20,000 gallons – Use Bright Dyes® tablets
A. Septic system analysis
B. Leak detection
C. Plumbing and sewer tracing
D. Storm and sewer drains

MODERATE VOLUMES OF WATER – 20,000 to 50,000 gallons – Use Bright Dyes® tablets, Bright Dyes® liquid concentrate or Bright Dyes® wax products
A. Examine water movement, current, flows
B. Flow mapping and tracing
C. Flow time studies
D. Storm and sewer drains

LARGE VOLUMES OF WATER – 50,000 + gallons – Use Bright Dyes® liquid concentrate or Bright Dyes® powder.
A. Leak detection
B. Flow Studies
C. Pollution studies
D. Condenser tubes and coils
E. Power plant piping
F. Lakes, rivers, ponds

FOR PROJECTS WHERE METERING OF INPUT INTO SYSTEMS IS REQUIRED – Use Bright Dyes® liquid
concentrate
A. Flow studies
B. Dilution rates
C. Leak detection
D. Pollution detection, septic tanks, sewer lines

For small amounts of water, the Bright Dyes® tablets are clean and easy to use…no measuring is required. They may be dropped or flushed directly into a drain, sewer, septic system, etc., where they dissolve in about 3-5 minutes. Or, they may be dissolved in a small amount of water first.

For larger bodies of water, Bright Dyes® powder or Bright Dyes® liquid concentrate may be more suitable for your needs.

In the situation of a long-term flow study Bright Dyes® wax products such as cakes, cones, or donuts may be appropriate.

ASK AN EXPERT

HAVE QUESTIONS / NEED A QUOTE?

SHOP ALL TRACER DYES

APPLICATIONS FOR BLUE LEAK TRACING POWDER

Blue is particularly beneficial for seeing water flow in clay pipes. The bright blue coloring makes it ideal for a wide variety of applications including: leak detection in large closed loop systems, power plant piping and cooling towers, lakes, rivers, ponds, sewer and drain connections. If blue leak tracing powder won’t work for your application, we encourage you to browse our complete selection of water leak tracing powder to ensure you find the type and color for your job. Make the environmentally friendly choice with Kingscote Chemicals.
